# Automatic Registration
## Introduction
Automatic registration is the attempt to match a pattern in an image
cube. Pattern matching has many different purposes.
Examples:
1. Register an entire image to a second image. The registration of an
image is performed by moving (rubber-sheet) the pixels to output
pixel locations that result in pattern matching directly to a second
'fixed' or 'truth' image.
- Use: [coreg](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/coreg/coreg.html)
2. Relative cartographic registration between a number of overlapping
images. Pattern matching is used to build a control point network
across a number of overlapping images for solving and adjusting the
camera pointing that are then applied to map project the images.
- Use: [pointreg](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/pointreg/pointreg.html) or [jigsaw](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/jigsaw/jigsaw.html)
3. Find and record the pixel location(s) of a camera reference mark
(e.g., Vidicon reseau mark) across an image
- Use: [findrx](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/findrx/findrx.html)
## Match Algorithm Definition Files (PVL)
Registration of images can be an advanced and complicated process. ISIS3
is designed to supply a choice of match/registration algorithms to
handle a variety of image data conditions. An ISIS3 "plugin" algorithm
expects all match algorithms to supply parameter information through a
Parameter Value Language (PVL) definition file. Examples of match
algorithm PVL's can be found in
$ISIS3DATA/base/templates/autoreg/coreg*.def
Registration applications (such as coreg) will allow the user to choose
from this collection of PVL files in the user interface gui.
A PVL file can be generated for a selected match algorithm with
[autoregtemplate](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/autoregtemplate/autoregtemplate.html).
## Match Algorithms
### Maximum Correlation
The Maximum Correlation match algorithm is most commonly used. The
algorithm computes a
correlation coefficient that will range from no correlation (zero) to
perfect correlation (one).
Example templates for Maximum Correlation can be found in:
$ISIS3DATA/base/templates/autoreg/coreg.maxcor.p*.s*.def.
An example PVL for the Maximum Correlation follows:
Object = AutoRegistration
Group = Algorithm
Name = MaximumCorrelation
Tolerance = 0.7
End_Group
End_Object
!!! tip
A successful correlation is met if the **Goodness of Fit** is **Greater Than**
the Tolerance parameter value for the Maximum Correlation Algorithm.
### Minimum Difference
The Minimum Difference match algorithm performs a subtraction of the
Pattern Chip and the sub-region of the Search Chip. The **Goodness of
Fit** will range from zero for a perfect match, while larger values
indicate a less likely match. The **Goodness of Fit** is measured as an
absolute value and will never be negative.
Example templates for Minimum Difference can be found in:
$ISIS3DATA/base/templates/autoreg/coreg.mindif.p*.s*.def.
An example PVL for the Minimum Difference follows:
Object = AutoRegistration
Group = Algorithm
Name = MinimumDifference
Tolerance = 100
End_Group
End_Object
!!! tip
A successful correlation is met if the **Goodness of Fit** is **Less
Than** the Tolerance parameter value for the Minimum Difference Algorithm.
## Tolerance
The Tolerance parameter is used by both Maximum
Correlation and Minimum
Difference. Each correlation coefficient result
(**Goodness of Fit**) is tested against the Tolerance. Tolerance is set
within the PVL file along with the chosen
registration algorithm.
Points that fail the Tolerance test are reported by the autoreg
applications as:
- `FitChipToleranceNotMet`
- `SurfaceModelToleranceNotMet`
## Chips
There are two chips used in automatic registration, the Pattern
Chip and the Search Chip. The
two chips are nothing more than sub-areas of the input image cubes,
generally small in size. An NxM Chip is defined to be an N-Sample by
M-Line region of an image. Basic elements of a chip are:
- N and M are natural numbers (1, 2, 3...,50)
- Like image cubes, chip coordinates are sample/line and 1-band based
- The center of the chips is (N - 1)/2 + 1 and (M - 1)/2 + 1
### Pattern Chip
A Pattern Chip will contain the data you would like to match. This
Pattern Chip is basically extracted from the 'Reference' image (it is
also referred to as the 'Truth' image). The Pattern Chip is then walked
across the Search Chip that has been extracted from
the other image that is to be modified.
The PVL for a Pattern Chip defined as 25 Samples x 25 Lines (625 pixels)
is:
Object = AutoRegistration
Group = PatternChip
Samples = 25
Lines = 25
End_Group
End_Object
**Pattern Chip Size Requirement:**
N + M \>= 3. This ensures that the pattern is not a single pixel.
???+ tip "Tips"
1. The feature to match included in the Pattern Chip does not have to
be in the center.
2. The more "bland" the data is within the input images, the larger the
Pattern Chip box should be. A larger box will allow for more pixel
DN variance.
3. In general, avoid very small box sizes less than 11 Samples X 11
Lines
4. The smaller the size of the Pattern Chip, the greater the chance of
matching too many areas in the search chip and returning a 'false
positive' match.
### Search Chip
A Search Chip is the sub-area of the image cube that the pattern might
be found in. The Pattern Chip is walked through the
Search Chip looking for the best match. The Search Chip must be larger
than the Pattern Chip (at least one pixel bigger on line/sample size).
The PVL for a Search Chip defined as 45 Samples x 45 Lines (2025 pixels)
is:
Object = AutoRegistration
Group = PatternChip
Samples = 25
Lines = 25
End_Group
Group = SearchChip
Samples = 45
Lines = 45
End_Group
End_Object
**Search Chip Size Requirement:**
!!! danger "TODO - Update Link"
TODO: Update **Sub-Pixel Definition** links to new docs once those pages are migrated.
N(search) \>= N(pattern) + 2 and similarly for M. This ensures that the
Pattern Chip spans at least a 3x3 window within the Search Chip. An
important requirement for surface fitting in order to compute sub-pixel
accuracy. (Refer to: [Sub-Pixel Definition](https://DOI-USGS.github.io/ISIS3/gh-pages/ISIS_Cube_Format)).
???+ tip "Tips"
- The Search Chip must be larger than the Pattern Chip (at least one
pixel bigger on line/sample size).
- The Search Chip needs to be large enough to allow a 'best guess' or
predicted line and sample mis-registration offset between the images
that are to be correlated.
- **SearchChipSize = PatternChipSize + (OffsetPixelEstimate *
2)**
- BUT, the Search Chip shouldn't be too much larger than the Pattern
Chip.
- The difference in size could greatly affect how long the
registration application would run.
- Refer to PVL example above:
- An estimated offset between two input images of 10 Lines by 10
Samples will need a Search Chip size (10 Line offset * 2) by
(10 Sample offset * 2). The Search Chip size in this example
needs to be at least 20*20 Lines/Samples bigger than the pattern
chip.
- PatternChipSize = 25 * 25
- SearchLineDimention = 25 + (10 * 2) = 45 * SearchSampleDimention = 25 + (10 * 2) = 45
- SearchChipSize= 45 * 45
## Restricting Input Pixel Ranges
!!! danger "TODO - Update Link"
TODO: Update **Input Pixels** and **Special Pixel** links to new docs once those pages are migrated.
The validity of the [input pixels](https://DOI-USGS.github.io/ISIS3/gh-pages/ISIS_Cube_Format)
of the Pattern Chip is the very first test
performed. Prior to the match algorithm being invoked during the walk
process, a simple test is performed to ensure there are enough pixels to
work with. Pixels are deemed valid if they are in the minimum/maximum
range and/or they are not [special pixel](https://DOI-USGS.github.io/ISIS3/gh-pages/Special_Pixels.html) values.
The Pattern Chip is only checked once. If it does not contain enough
valid pixels, the match is deemed to fail. Otherwise, the walk through
occurs and the sub-area is extracted from the Search
Chip. If this sub-area does not have enough valid
pixels a match will be deemed to fail at that search location.
Points that fail the default or specified Valid Minimum/Maximum and/or
ValidPercent tests are reported by the autoreg applications as:
- `PatternNotEnoughValidData`
- `FitChipNoData`
- `SurfaceModelToleranceNotMet`
### Valid Minimum/Maximum
Input image pixels (DN) values may be excluded from the match
algorithm if they fall outside of a specific range. The ranges can be
specified independently for the Search Chip and Pattern Chip. While this
might not be necessary for a successful registration, excluding pixel
data could improve the chances depending on the characteristics of the
input images. (i.e., Eliminating the DN range of deep shadow areas in an
image).
The ranges are handled via the PVL as follows:
Object = AutoRegistration
Group = PatternChip
Samples = 20
Lines = 20
ValidMinimum = 0.1
ValidMaximum = 0.4
End_Group
Group = SearchChip
Samples = 55
Lines = 55
ValidMinimum = 2.5
ValidMaximum = 10.5
End_Group
End_Group
### Valid Pixel Count (ValidPercent)
`ValidPercent` defines the percentage of valid data that is required
within the Pattern Chip or Search Chip. The parameter can be set in
conjunction with Valid Minimum/Maximum.
The Valid Percent would be handled via the PVL as follows:
Object = AutoRegistration
Group = PatternChip
Samples = 20
Lines = 20
ValidPercent = 80
End_Group
End_Group
Default for `ValidPercent`: `AutoRegDefaults`
!!! tip
`ValidPercent` is specified in the Pattern Chip, as the sub-area
chip of the search area will use the same value.
## Fit Chip
As the Pattern Chip walks through the sub-regions
of the Search Chip , a third chip is generated
called a Fit Chip. The Fit Chip will have the same line and sample
dimensions as the Search Chip. The Fit Chip is filled with the resulting
**Goodness of Fit** values at every position that the Pattern Chip is walked
across the Search Chip computing a fit correlation value.
The highest or lowest **Goodness of Fit** values within the Fit Chip
generally represent the position that best matched between the Pattern
and Search areas. It is only good to a maximum of **ONE pixel accuracy**.
The Fit Chip can be interactively generated and viewed using the image
display application
[qnet](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/qnet/qnet.html).
## Sub-Pixel Accuracy
!!! danger "TODO - Update Link"
TODO: Update **Sub-Pixel Definition** links to new docs once those pages are migrated.
The attempt to reach a registration of sub-pixel accuracy is performed
on the Fit Chip. The Fit Chip is created as the
Pattern Chip is walked through Search
Chip. The Fit Chip contains the resulting
correlation position between the two chips of a maximum of ONE pixel
accuracy. In many cases, the actual, ultimate registration may lie
somewhere between two pixels. (Refer to:
[Sub-Pixel Definition](https://DOI-USGS.github.io/ISIS3/gh-pages/ISIS_Cube_Format)).
The sub-pixel accuracy can be turned off through the PVL settings as
follows:
Group = Algorithm
Name = MaximumCorrelation
SubPixelAccuracy = False
End_Group
When the sub-pixel accuracy is turned off, the whole pixel with the best
fit is returned.
Default for SubPixelAccuracy: AutoRegDefaults
!!! tip
By default, if an ideal **Goodness of Fit** is found (e.g. Zero (0.0) for
Minimum Difference or One (1.0) for Maximum Correlation), we have a perfect
fit and assume that it is the best position. In this case, the sub-pixel
accuracy phase is omitted.
### Surface Modeling
A continuous mathematical surface is modeled based on the data within
the Fit Chip. A 2nd degree 2-dimensional
polynomial is calculated given an NxN window of points extracted from
the Fit Chip surrounding the correlation peak (highest value)-which
represents the whole pixel registration. An estimate of the true
sub-pixel registration position of the chip can be reached based on this
surface model.
A perfect 3D linear fit (global maximum) would be represented by a
spherical surface with a single high peak.
## AutoRegDefaults
(As of May 20, 2009)
ValidPercent = 50.0
MinimumZScore = 1.0
Tolerance = Null (no default)
ReductionFactor = 1.0
SubPixelAccuracy = True
SurfaceModelDistanceTolerance = 1.5
SurfaceModelWindows = 5
SurfaceModelEccentricityRatio = 2 (2:1)
This diff is collapsed.
# Image Registration
There two alternative paths to automatically creating a tie-point
control network.
1. **Autoseed Path**

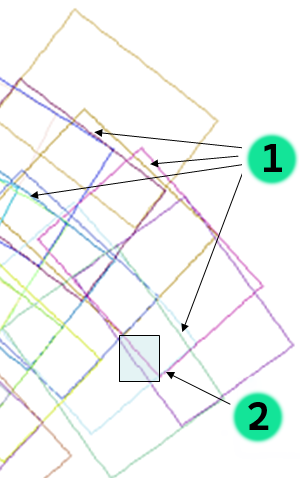

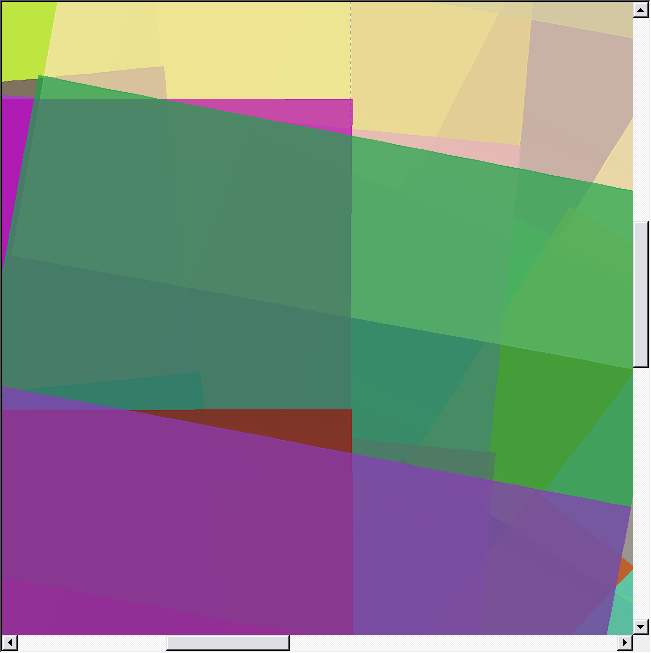

- This path will distribute and establish tie-points based on
polygon overlaps of a collection of images.

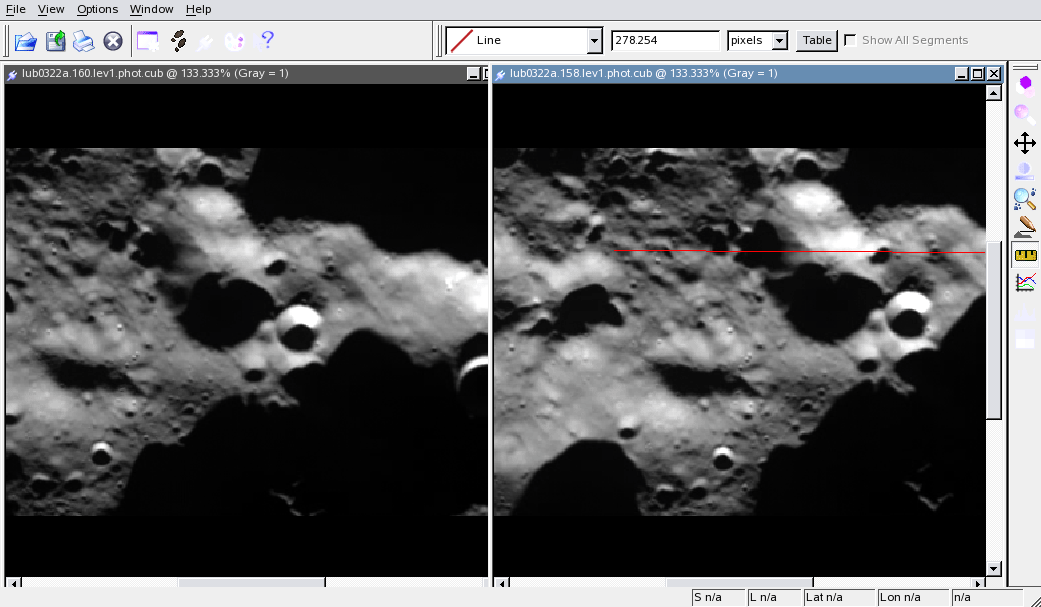

- The image coordinates for each point are immediately measured
with the **autoseed** application.

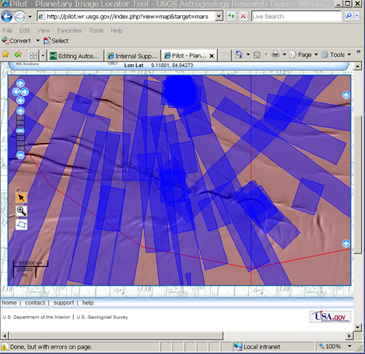

- The **footprintinit** and **findimageoverlaps** are required by
**autoseed**
1. **Seedgrid Path**
- A gridded pattern of tie-points are established based on
specified latitude/longitude values and spacing.
- The image coordinates for each "seeded" point are measured with
the **cnetadd** application.
## Creating a Tie-Point Control Network
| autoseed Path | seedgrid Path |
| ----------------- | ------------- |
| spiceinit | spiceinit |
| footprintinit | |
| findimageoverlaps | seedgrid |
| autoseed | cnetadd |
| cnetref | cnetref |
| pointreg | pointreg |
## Related ISIS3 Applications
[**spiceinit**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/spiceinit/spiceinit.html)
[**footprintinit**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/footprintinit/footprintinit.html)
[**findimageoverlaps**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/findimageoverlaps/findimageoverlaps.html)
[**autoseed**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/autoseed/autoseed.html)
[**seedgrid**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/seedgrid/seedgrid.html)
[**cnetadd**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/cnetadd/cnetadd.html)
[**cnetref**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/cnetref/cnetref.html)
[**pointreg**](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/pointreg/pointreg.html)
# Multi-Instrument Registration
## Reasons for merging datasets
List of useful reasons:
- Change detection
- Spatial / Spectral merges
- Understanding instrument calibration (optical distortion,
radiometric similarities)
- Multivariate statistical analysis
- Principal component analysis
- Etc., etc., etc.
## Choosing the "truth"
Datasets from different instruments often do not register using the raw,
native pointing. In order to merge these datasets, they must be brought
together by selecting one dataset as having the correct pointing or
“truth”. The pointing for the other datasets is then adjusted to match
the truth.
Choosing the truth is dependent on the datasets being merged. First, the
data with the known best pointing could be chosen, such as the Mars
Global Surveyor’s MOLA. Or if simply merging HiRISE and CTX, HiRISE
pointing is considered to be more accurate than CTX pointing.
The differing resolution of the datasets is something to keep in mind.
You will not want to attempt to register HiRISE directly to MOLA as the
difference in resolution is too large to find a common point. In
general, you will want to build up in resolution.
| Resolution: | Lowest | - | - | - | - | Highest |
| ---------- |:------:|:------:|:------:|:------:|:---:|:-------:|
| Dataset: | MOLA | MOC WA | Themis | MOC NA | CTX | HiRISE |
Registering to MOLA can be difficult. Using a shaded relief version of
MOLA (program – **shade**), and running either
[map2map](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/map2map/map2map.html)
or
[map2cam](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/map2cam/map2cam.html)
to bring MOLA into the local ground area will help.
| CTX | MOLA |
| ---------------------------------------------------------------------------- | -----------------------------------------------------------------------------|
| ![CTX High Res](../../assets/control-networks/ctx-high-res.png){ width=200 } | ![MOLA Low Res](../../assets/control-networks/mola-low-res.png){ width=200 } |
### Registration Tools
[**deltack**](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/deltack/deltack.html)
- Updates camera pointing for a single image
- Tie one image to another
- THEMIS to MOLA, HiRISE to MOC NA, HiRISE to CTX, etc.
[**jigsaw**](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/jigsaw/jigsaw.html)
- Simultaneously updates camera pointing for multiple images
- Typically used for regional or global mosaics
### Initial Datasets
Start with Experiment Data Records (EDRs) if possible to ensure
consistency among the datasets for SPICE and mapping parameters such as
planetocentric vs planetographic and positive longitude east vs west.
## Merging THEMIS / CTX / HiRISE (controlled to MOLA)
### Controlling THEMIS to MOLA
Start with the lowest resolution dataset, which in this case is THEMIS.
Pick a matching point between THEMIS and MOLA using qview. (Hint: It is
easier to use a crater as a match point.)
Write down the latitude / longitude of the point on MOLA and the sample
/ line of the point on the THEMIS image. Update the THEMIS pointing by
running the ISIS3 program `deltack`.
deltack from=themis.cub lat1=molaLat lon1=molaLon samp1=themisSamp line1=themisLine
This will update the themis pointing to the MOLA.
### Controlling CTX to THEMIS
Next, control the CTX image to the THEMIS image by picking a match point
the same as was done between the MOLA and THEMIS. Use the THEMIS image
that has the updated pointing (after
[deltack](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/deltack/deltack.html)).
deltack from=ctx.cub lat1=themisLat lon1=themisLon samp1=ctxSamp line1=ctxLine
### Controlling HiRISE to CTX
![](../../assets/control-networks/ctx-hirise-blink.gif){ align=right width=350 }
[Image: CTX/HiRISE Misregistration. Errors: ~40 samples, ~20 lines]
First, control the HiRISE red ccds locally by running the ISIS3 program,
[autoseed](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/autoseed/autoseed.html),
which will automatically pick match points among the red ccd’s. Then run the ISIS3 program,
[pointreg](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/pointreg/pointreg.html),
which will sub-pixel register the points that autoseed picked.
Next, pick a matching point between HiRISE RED5 and the CTX image with
the updated pointing (after deltack). Record the CTX latitude /
longitude and the red5 sample / line. This will be used as a ground
point when running jigsaw on the red CCDs to adjust the pointing.
In order to use this point as a ground point, the radius is needed. Run
the ISIS3 program,
[campt](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/campt/campt.html)
to get this radius.
campt from=ctx.cub lat=cxtLat lon=ctxLon type=ground
This ground point can now be added to the control net file that was
output from pointreg using any editor.
Object = ControlPoint
PointType = Ground
PointId = Ground_1
Latitude = -5.3320739040534
Longitude = 213.71209674872
Radius = 3394090.9408245
Group = ControlMeasure
SerialNumber = MRO/HIRISE/RED5/848376111:51904/2
MeasureType = Automatic
Sample = 1131.92
Line = 18555.3
ErrorLine = 0
ErrorSample = 0
ErrorMagnitude = 0
DateTime = 2007-05-25T09:24:50
ChooserName = "TLS"
GoodnessOfFit = 0
Reference = True
End_Group
End_Object
Finally, run
[jigsaw](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/jigsaw/jigsaw.html)
on the HiRISE red cubes.
See Also:
- controlled mosaics
- [jigsaw](https://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/jigsaw/jigsaw.html)

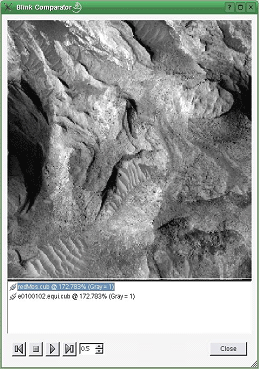

| MOC Registered with HiRISE Red CCDs | MOC Registered with HiRISE Red CCDs (zoomed) |
| ------------------------------------------------------- | ---------------------------------------------------------------- |
| ![](../../assets/control-networks/moc-hirise-blink.gif) | ![](../../assets/control-networks/moc-hirise-zoomedin-blink.gif) |
## Projecting all
Project the THEMIS, CTX and HiRISE red images using the CTX resolution
and latitude/longitude range.
cam2map from=ctx.cub to=ctx.equi.cub pixres=mpp resolution=5.0
map=$base/templates/maps/equirectangular.map
cam2map from=themis.cub to=themis.equi.cub map=ctx.equi.cub pixres=map defaultrange=map
/bin/ls *RED* | sed s/.balance.cub// > red.lis
cam2map from=\$1.balance.cub to=\$1.equi.cub map=ctx.equi.cub pixres=map defaultrange=map
-batch=res.lis
/bin/ls *RED*.equi.cub > redEqui.lis
automos fromlist=redEqui.lis mosaic=redMos.cub match=no
More Information: [Learning About Map Projections](../camera-geometry-and-projections/learning-about-map-projections.md)
## Problems and Issues
- Registering to MOLA can be difficult:
- Use shaded relief if possible ([shade](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/shade/shade.html))
- Use
[map2cam](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/map2cam/map2cam.html)
or
[map2map](http://isis.astrogeology.usgs.gov/Application/presentation/Tabbed/map2map/map2map.html)
to bring MOLA image into local ground area to help with the
smaller MOLA image size
- Simultaneous CTX and HiRISE observations do not register
- Inconsistent sample/line offsets
- Probably have timing issues
- Maybe some boresight misalignment
- Will research this problem as more CTX data becomes available
- MOC Narrow Angle does not align with HiRISE or CTX
- Update the MOC NA focal length
- MOC NA camera model has no distortion model
- More research needed in this area
- MRO CRISM
- Unable to fully decipher the PDS IMAGE_PROJECTION_OBJECT
- No CRISM camera model in ISIS3
- Unable to compare HiRISE, MOC, and THEMIS to CRISM
## Images on this page
[mola-low-res.png](../../assets/control-networks/mola-low-res.png)
(31.9 KB) Jesse Mapel,
2016-05-31 02:59 PM
[ctx-high-res.png](../../assets/control-networks/ctx-high-res.png)
(243 KB) Jesse Mapel,
2016-05-31 02:59 PM
[ctx-hirise-blink.gif](../../assets/control-networks/ctx-hirise-blink.gif)
(213 KB) Jesse Mapel,
2016-05-31 03:06 PM
[moc-hirise-zoomedin-blink.gif](../../assets/control-networks/moc-hirise-zoomedin-blink.gif)
(118 KB) Jesse Mapel,
2016-05-31 03:12 PM
[moc-hirise-blink.gif](../../assets/control-networks/moc-hirise-blink.gif)
(39.9 KB) Jesse Mapel,
2016-05-31 03:12 PM
\ No newline at end of file
...@@ -77,6 +77,11 @@ nav: ...@@ -77,6 +77,11 @@ nav:
- The Power of Spatial Filters: concepts/image-processing/the-power-of-spatial-filters.md - The Power of Spatial Filters: concepts/image-processing/the-power-of-spatial-filters.md
- Overview of Noise and Artifacts: concepts/image-processing/overview-of-noise-and-artifacts.md - Overview of Noise and Artifacts: concepts/image-processing/overview-of-noise-and-artifacts.md
- Overview of Radiometric Calibration: concepts/image-processing/overview-of-radiometric-calibration.md - Overview of Radiometric Calibration: concepts/image-processing/overview-of-radiometric-calibration.md
- Control Networks:
- Automatic Registration: concepts/control-networks/automatic-registration.md
- Autoseed: concepts/control-networks/autoseed.md
- Image Registration: concepts/control-networks/image-registration.md
- Multi-Instrument Registration: concepts/control-networks/multi-instrument-registration.md
- Manuals: manuals/index.md - Manuals: manuals/index.md
extra_css: extra_css:
......
0% Loading or .
You are about to add 0 people to the discussion. Proceed with caution.
Please register or to comment
